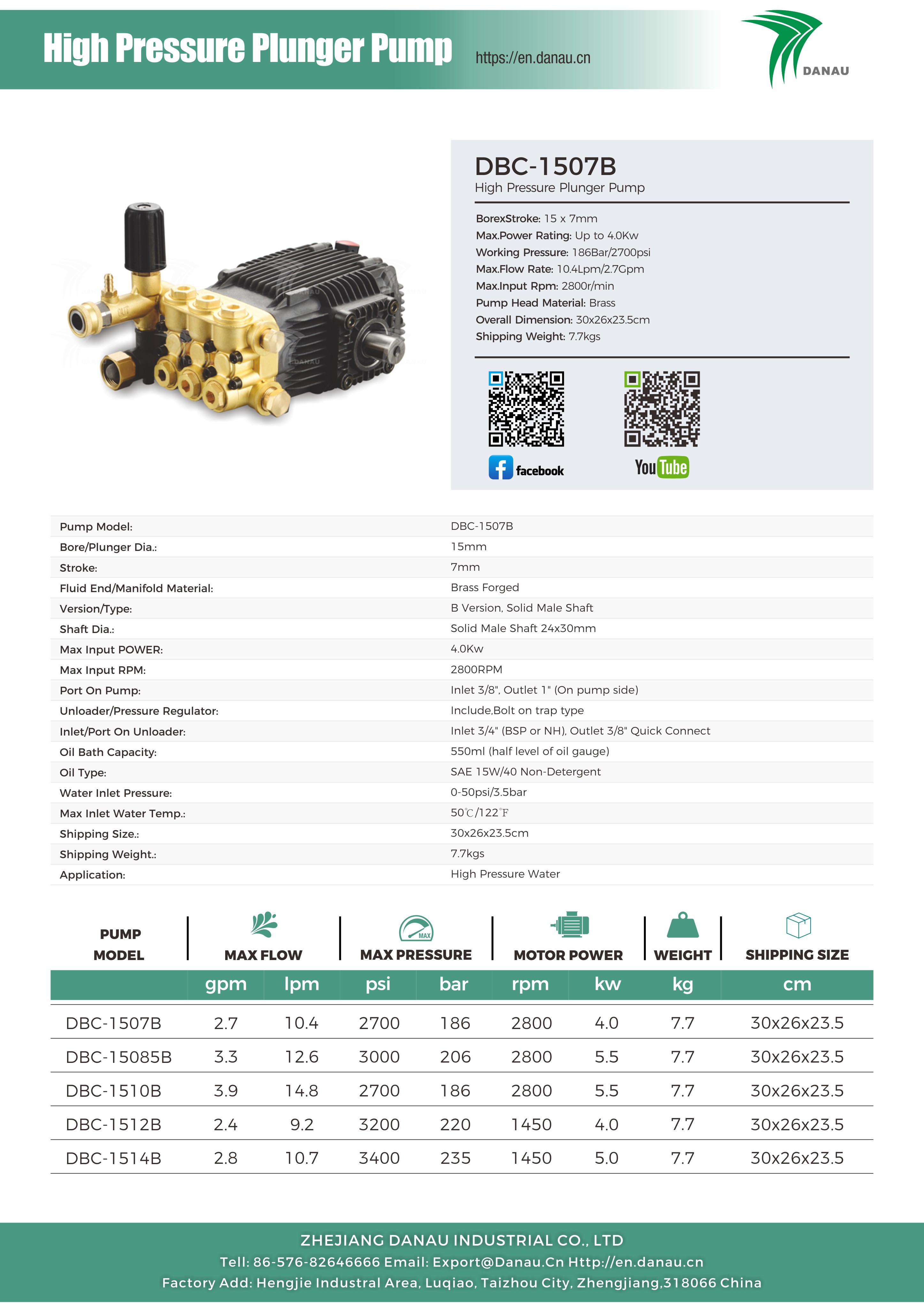

BorexStroke:?15 x 7mm
Max.Power Rating:?Up to 4.0Kw
Working Pressure:?186Bar/2700psi
Max.Flow Rate:?10.4Lpm/2.7Gpm
Max.Input Rpm:?2800r/min
Head Material:?Brass forged
Overall Dimension:?30x26x23.5cm
Shipping Weight:?7.7kgs
| Pump Model: | DBC-1507B | |
| Bore/Plunger Dia.: | 15mm | |
| Stroke: | 7mm | |
| Fluid End/Manifold Material: | Brass Forged |
|
| Version/Type: | B Version, Solid Male Shaft | |
| Shaft Dia.: | Solid Male Shaft 24x30mm | |
| Max Input POWER: | 4.0Kw | |
| Max Input RPM: | 2800RPM | |
| Port On Pump: | Inlet 3/8", Outlet 1" (On pump side) | |
| Unloader/Pressure Regulator: | Include,Bolt on trap type | |
| Inlet/Port On Unloader: | Inlet 3/4" (BSP or NH), Outlet 3/8" Quick Connect | |
| Oil Bath Capacity: | 550ml (half level of oil gauge) | |
| Oil Type: | SAE 15W/40 Non-Detergent | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 30x26x23.5cm | |
| Shipping Weight.: | 7.7kgs | |
| Application: | High Pressure Water | |
