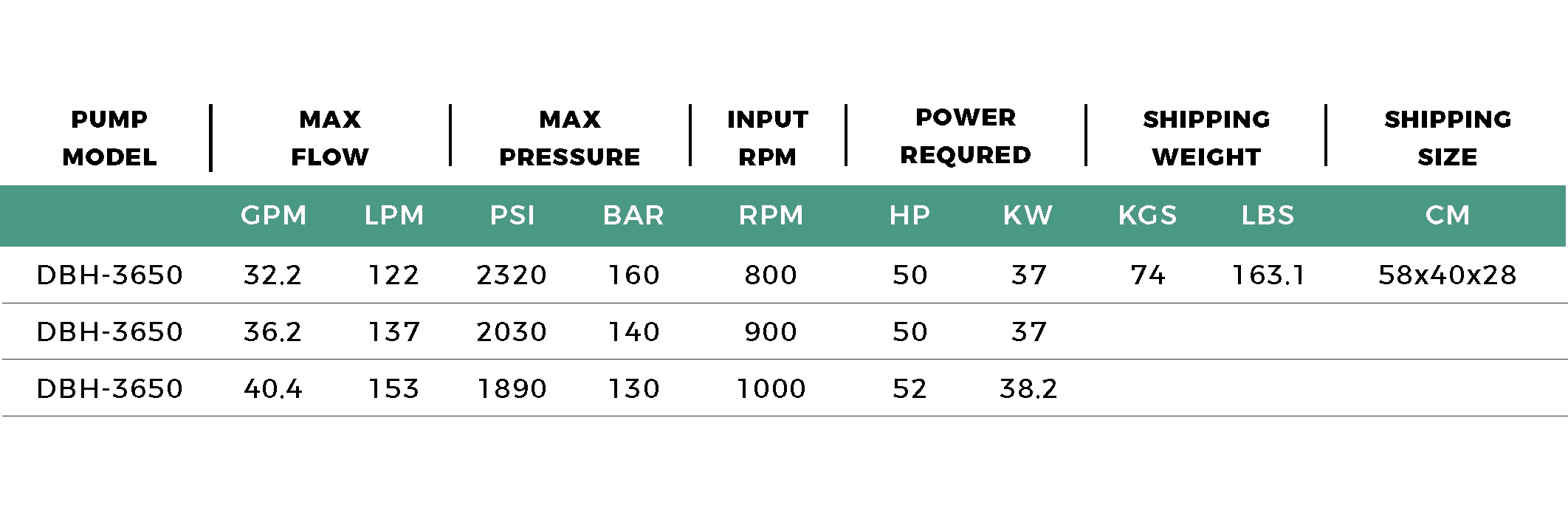

BorexStroke:?36x 50mm
Max.Power Rating:?As customers’ demand
Working Pressure:?160Bar/2320psi
Max.Flow Rate:?153Lpm/40.4Gpm
Max.Input Rpm:?As Customers’ demand
Head Material:?Stainless Steel
| Pump Model: | DBH-3650HM | |
| Bore/Plunger Dia.: | 36mm | |
| Stroke: | 50mm | |
| Fluid End/Manifold Material: | Brass Forged |
|
| Version/Type: | Hydraulic Motor Drive | |
| Flange Type: | N/A | |
| Input POWER: | As customers’ demand | |
| Input RPM: | As customers’ demand | |
| Inlet Port: | 1-1/2" BSP | |
| Outlet Port: | 1" BSP | |
| Unloader/Pressure Regulator: | Include,Bolt on trap type | |
| Oil Bath Capacity: | 3800ml (half level of oil gauge) | |
| Oil Type: | SAE 15W/40 Non-Detergent | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Application: | High Pressure Water | |
