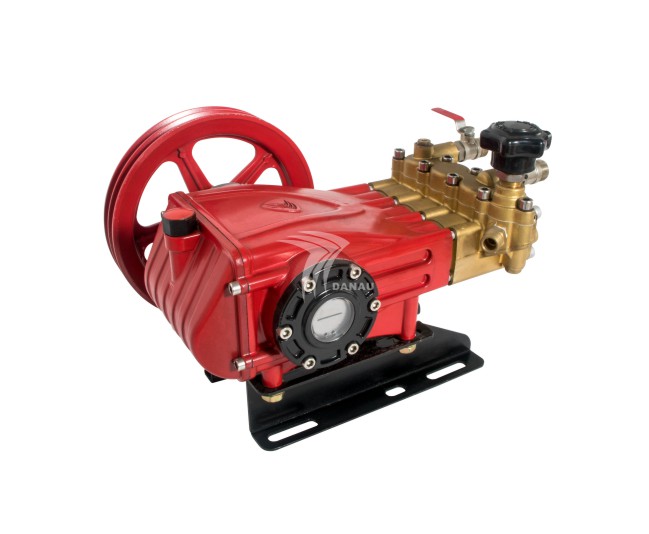

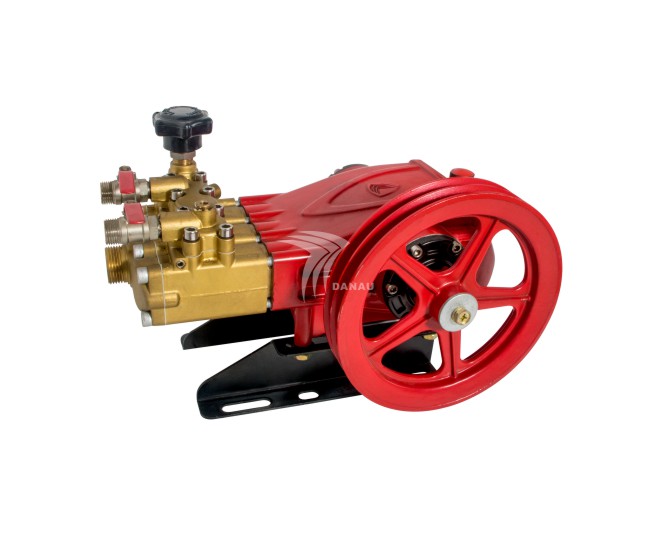

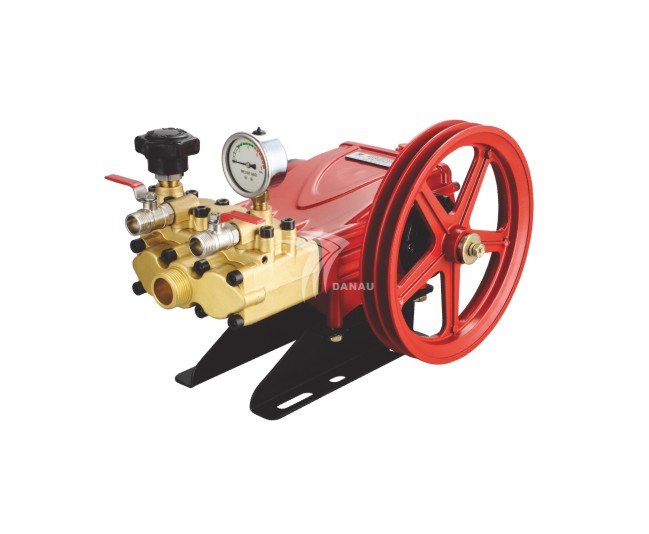

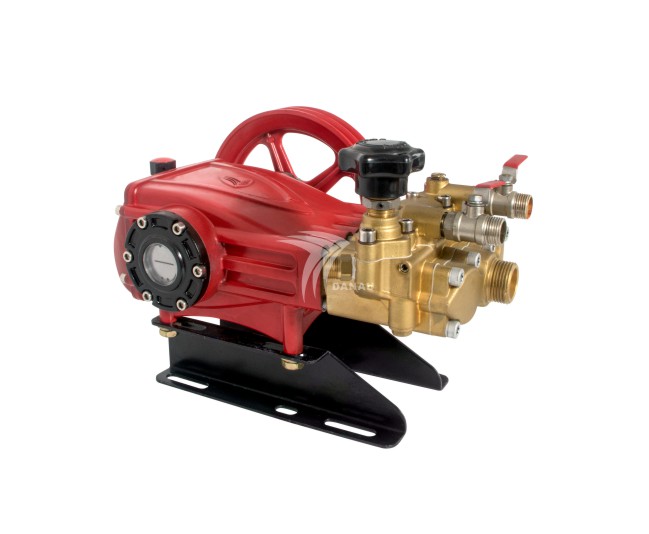

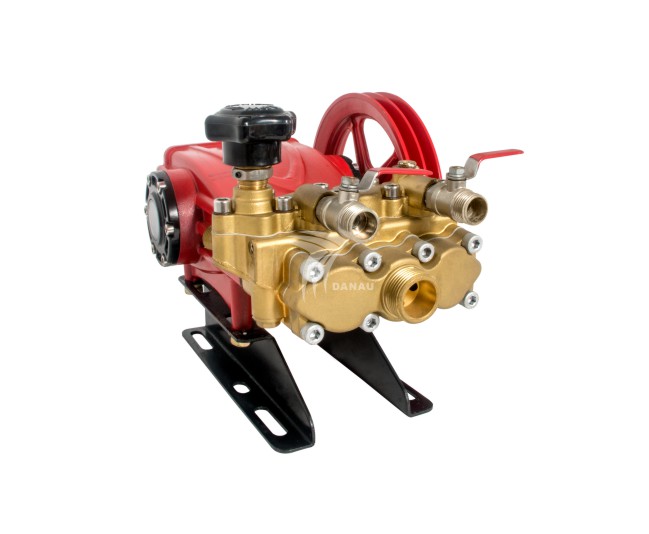

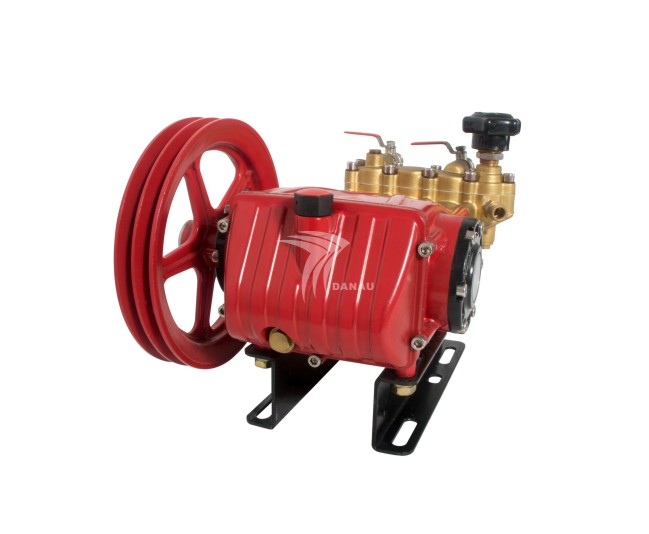

BorexStroke:?28 x 20mm
Max.Power Rating:?Up to 5kw
Max Pressure:?70Bar/1015psi
Max.Flow Rate:?50Lpm/14Gpm
Max.Input Rpm:?1450r/min
Head Material:?Brass Forged
Overall Dimension:?43x32x36cm
Shipping Weight:?14kgs
| Pump Model: | DBK-2820 | |
| Bore/Plunger Dia.: | 28mm | |
| Stroke: | 20mm | |
| Fluid End/Manifold Material: | Brass Forged |
|
| Version/Type: | B Version,Belt Drive | |
| Flange Type: | N/A | |
| Shaft Dia.: | Male shaft 24X36mm | |
| Max Input POWER: | 5kw | |
| Max Input RPM: | 1450RPM | |
| Port On Pump: | Outlet M22 Male, Inlet G3/4” Female | |
| Oil Bath Capacity: | 550ml (half level of oil gauge) | |
| Oil Type: | SAE 15W/40 Non-Detergent | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 43x32x36cm | |
| Shipping Weight.: | 14kgs | |
| Application: | High Pressure Water | |
