BorexStroke:?40 x 50mm
Max.Power Rating:?Up to 65HP
Working Pressure:?130Bar/1890psi
Max.Flow Rate:?224Lpm/59.1Gpm
Max.Input Rpm:?1190r/min
Head Material:?Nodular cast iron
Overall Dimension:?60x38x25cm
Shipping Weight:?85kgs

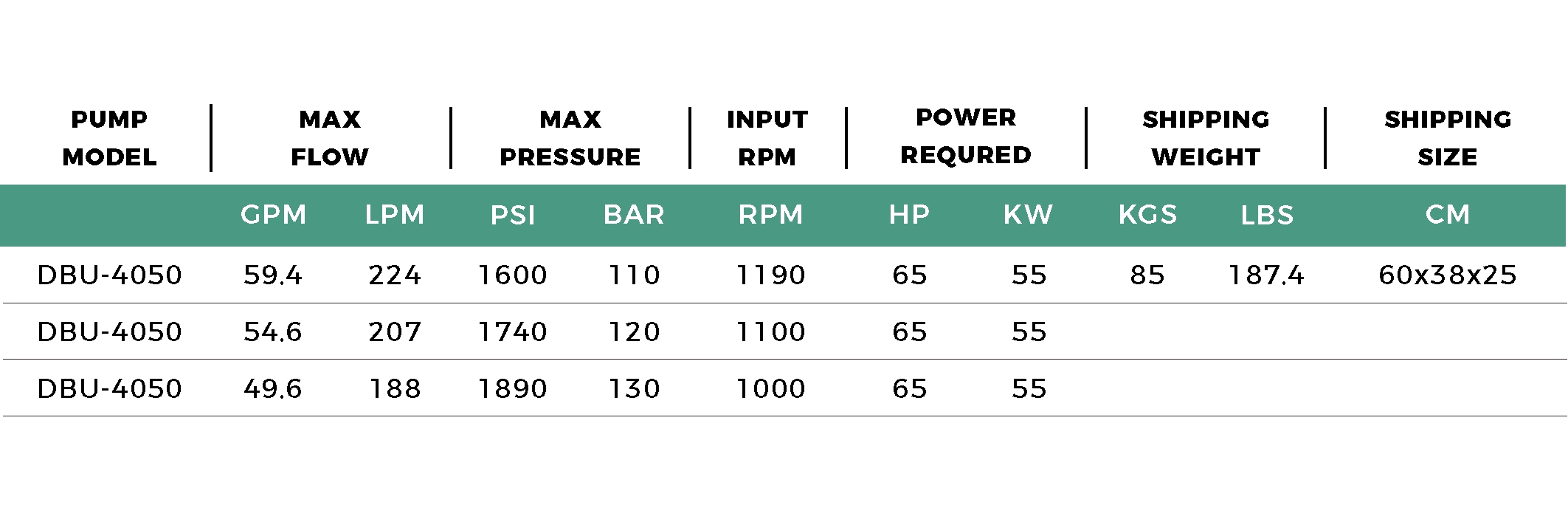

| Pump Model: | DBU-4050 | |
| Bore/Plunger Dia.: | 40mm | |
| Stroke: | 50mm | |
| Fluid End/Manifold Material: | Nodular cast iron | |
| Fluid End Material Options: | Stainless steel 316L,Duplex 2205 | |
| Max Input POWER: | 55KW/65HP | |
| Max Input RPM: | 1190RPM | |
| Shaft Dia.: | 39.95mm | |
| Inlet Port: | 1-1/2" BSP | |
| Outlet Port: | 1" BSP | |
| Oil Bath Capacity: | 4500ml (half level of oil gauge) | |
| Oil Type: | 85W/90 or greater GEAR OIL | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 60x38x25cm | |
| Shipping Weight.: | 85kgs | |
| Application: | High Pressure Water | |
