Max Pressrue:?166bar/2400psi
Max.Flow Rate:?8.5Lpm/2.2Gpm
Power Rating:?5.5hp/179cc
Drive Type: Direct Drive
Pump Input Rpm: 3400r/min
Pump Head Material:?Brass
Shipping Size:?67x41.5x55cm
Shipping Weight:?35kgs

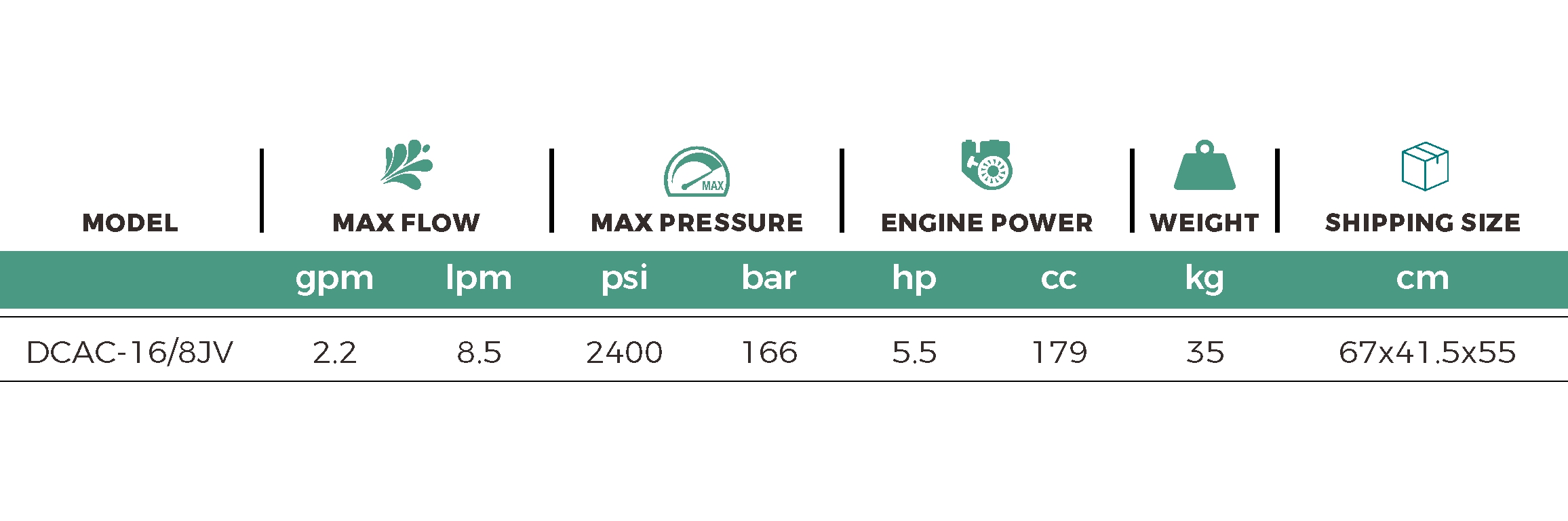

| PRODUCT MODEL: | DCAC-16/8JV | ||
| MAX PRESSURE: | 166bar/2400psi | ||
| MAX FLOW: | 8.5lpm/2.2gpm | ||
| HIGH PRESSURE PUMP: | |||
| PUMP MODEL: | DAC-13063AV | ||
| PUMP TYPE: | Axial, Engine Direct Drive | ||
| HEAD MATERIAL: | Brass Forged | ||
| PUMP FEATURES: | Built With Thermal Protection And Detergent Injector | ||
| GAS ENGINE: | |||
| POWER RATE: | 5.5hp/179cc OHV | ||
| START TYPE: | Recoil Start | ||
| ENGINE CERTIFICATION: | Standard, EPA And EUV As Required | ||
| FRAME AND WHEEL: | |||
| FRAME: | Powder Coating, Bolt One Handle, Include With Gun And Hose Hook | ||
| TYPE OF FRAME: | JB | ||
| COLOR OF FRAME: | Standard In Black | ||
| WHEEL: | 10" Pneumatic, Wheel Off When Shipping | ||
| ACCESSORIES INCLUDE: | |||
| PRESSURE GUN: | Professional Trigger Gun | ||
| PRESSURE LANCE: | 20" Stainless Steel Lance, M22 X 1/4"QD | ||
| HIGH PRESSURE HOSE: | ID1/4"(6.4mm) x 25ft(8m) Thermal Plastic Hose, M22 Swivel Fitting | ||
| NOZZLE TIPS: | 5Tips 1/4"QD Nozzle, 0°，15°，25°，40°And Soap Nozzle | ||
| WATER IN-TAKING HOSE: | Not Include, Provide As Required | ||
| POLICIES: | |||
| WARRANTY: | 1 Year Limited Warranty | ||
| SIZE AND WEIGHT: | |||
| SHIPPING SIZE: | 67x41.5x55cm | ||
| SHIPPING WEIGHT: | 35kg | ||
VIDEOS

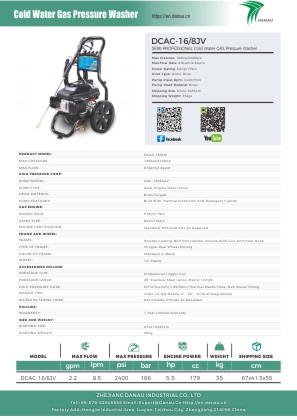

Product Data Sheet
