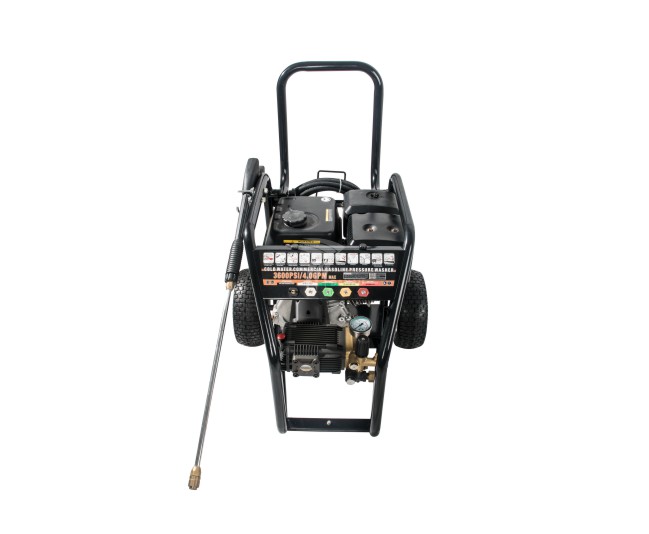

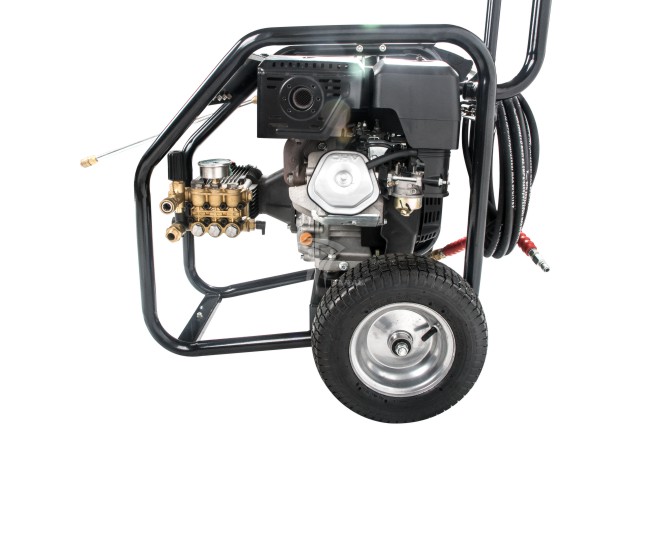

Max Pressrue:?235bar/3400psi
Max.Flow Rate:?15Lpm/4.0Gpm
Power Rating:?9.0hp/270cc
Drive Type: Direct Drive
Pump Input Rpm: 3400r/min
Pump Head Material:?Brass
Shipping Size:?77x50x62cm
Shipping Weight:?60kgs

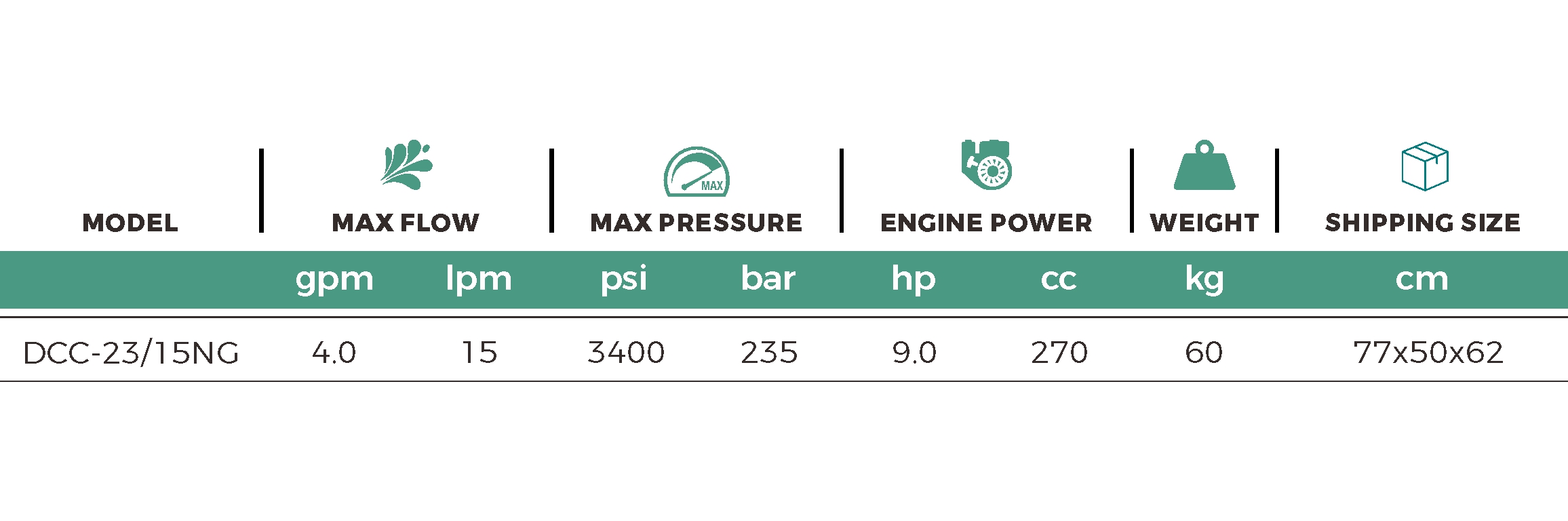

| PRODUCT MODEL: | DCC-23/15NG | ||
| MAX PRESSURE: | 235bar/3400psi | ||
| MAX FLOW: | 15lpm/4.0gpm | ||
| HIGH PRESSURE PUMP: | |||
| PUMP MODEL: | DBC-1508A | ||
| PUMP TYPE: | Gasoline Engine Direct Drive | ||
| HEAD MATERIAL: | Brass Forged | ||
| PUMP FEATURES: | Built With Thermal Protection And Detergent Injector | ||
| GAS ENGINE: | |||
| POWER RATE: | 9hp/270cc | ||
| START TYPE: | Recoil Start | ||
| ENGINE CERTIFICATION: | Standard, EPA And EUV As Required | ||
| FRAME AND WHEEL: | |||
| FRAME: | Powder Coating, Bolt One Handle, Include With Gun And Hose Hook | ||
| TYPE OF FRAME: | JB | ||
| COLOR OF FRAME: | Standard In Black | ||
| WHEEL: | 13" Pneumatic, Wheel Off When Shipping | ||
| ACCESSORIES INCLUDE: | |||
| PRESSURE GUN: | Professional Trigger Gun | ||
| PRESSURE LANCE: | 20" Stainless Steel Lance, M22 X 1/4"QD | ||
| HIGH PRESSURE HOSE: | ID5/16"(8mm) x30ft(10m) steel braided hose, 3/8" Quick connect | ||
| NOZZLE TIPS: | 5Tips 1/4"QD Nozzle, 0°，15°，25°，40°And Soap Nozzle | ||
| WATER IN-TAKING HOSE: | Not Include, Provide As Required | ||
| POLICIES: | |||
| WARRANTY: | 1 Year Limited Warranty | ||
| SIZE AND WEIGHT: | |||
| SHIPPING SIZE: | 77x50x62cm | ||
| SHIPPING WEIGHT: | 60kg | ||
