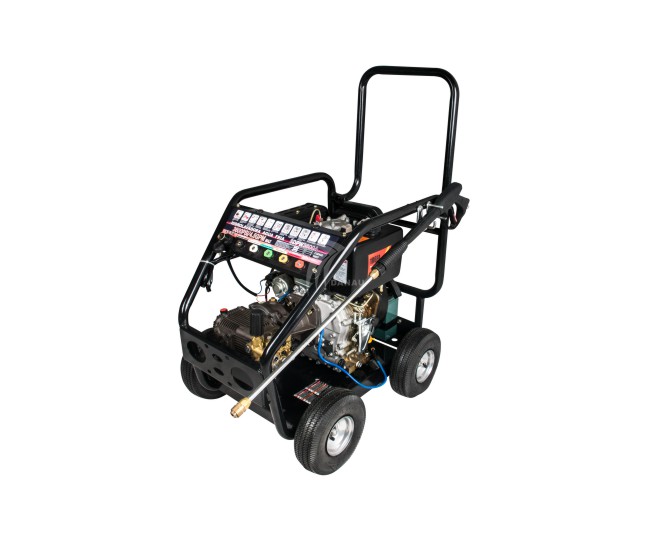

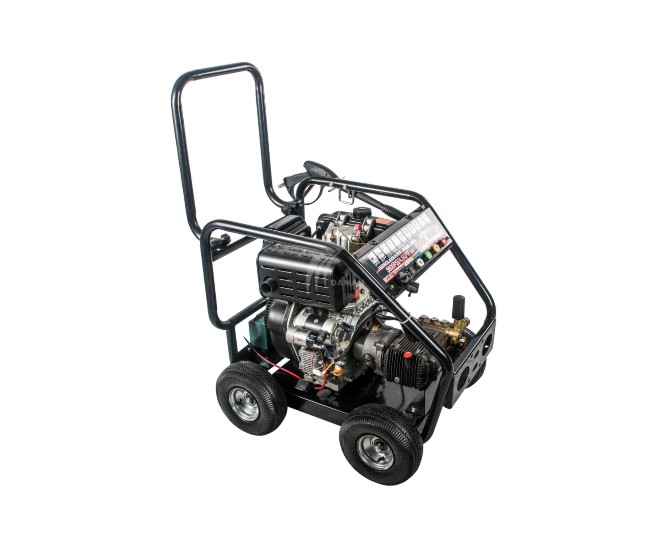

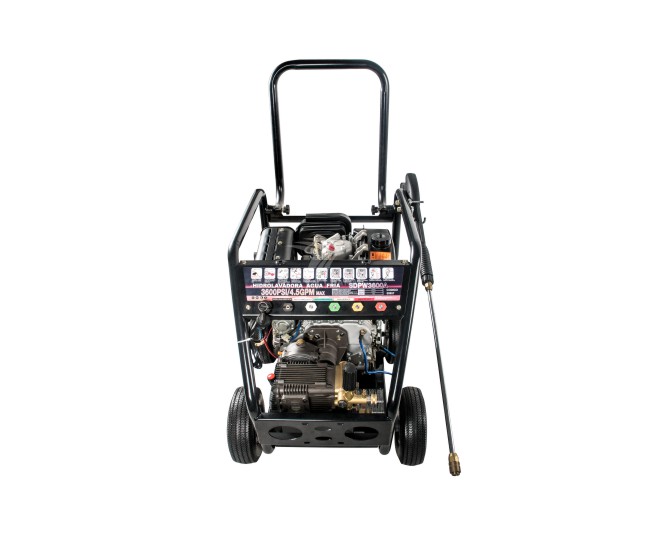

Max Pressrue:?248bar/3600psi
Max.Flow Rate:?17Lpm/4.5Gpm
Power Rating:?418cc
Drive Type: Direct Drive
Pump Input Rpm: 3400r/min
Pump Head Material:?Brass
Shipping Size:?80x53x64cm
Shipping Weight:?106kgs

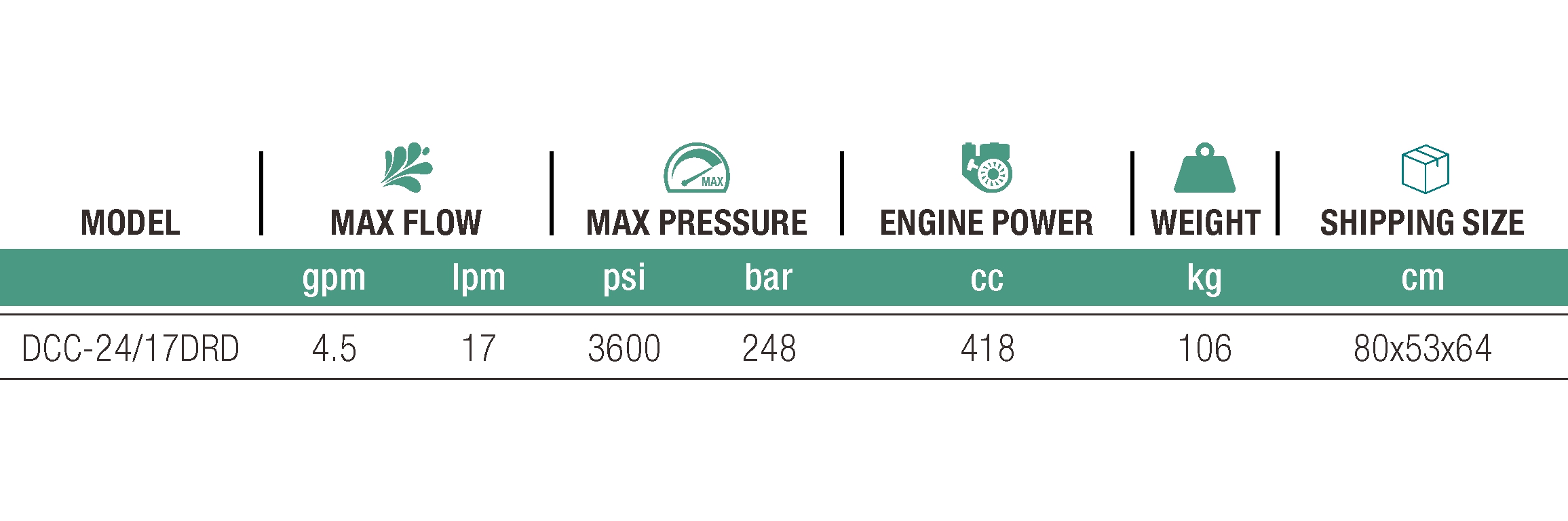

| PRODUCT MODEL: | DCC-24/17DRD | ||
| MAX PRESSURE: | 248bar/3600psi | ||
| MAX FLOW: | 17lpm/4.5gpm | ||

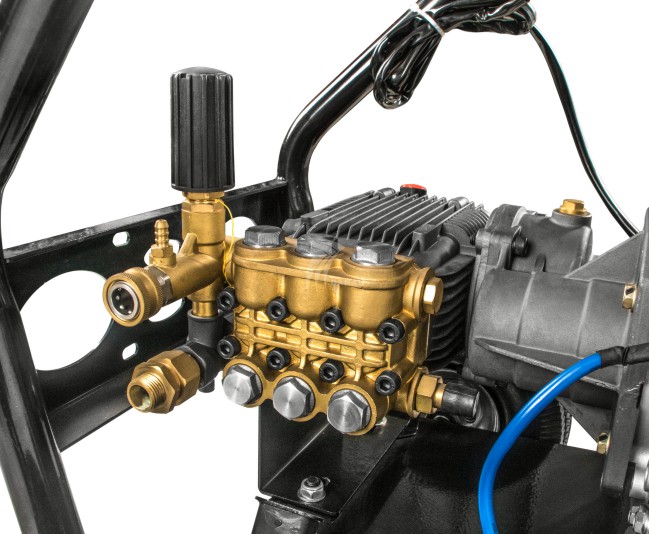

| HIGH PRESSURE PUMP: | |||
| PUMP MODEL: | DBD-1814FG2 | ||
| PUMP TYPE: | Diesel Engine, Gearbox Reduction | ||
| HEAD MATERIAL: | Brass Forged | ||
| PUMP FEATURES: | Built With Thermal Protection And Detergent Injector | ||

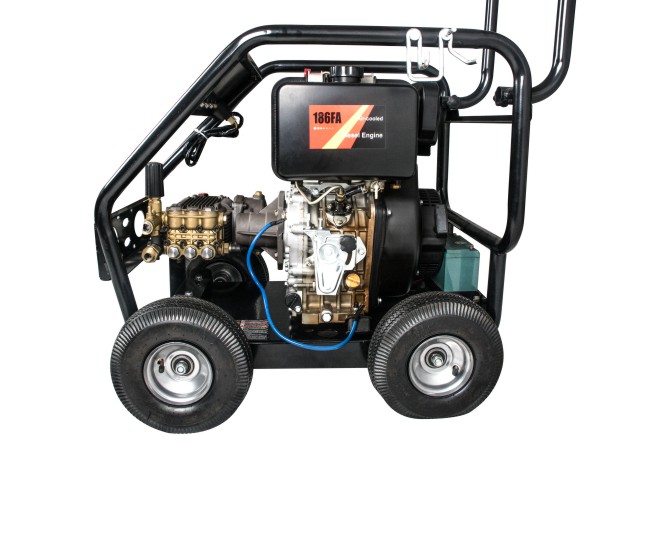

| DIESEL ENGINE: | |||
| POWER RATE: | 418cc,diesel engine | ||
| START TYPE: | Recoil Start | ||
| ENGINE CERTIFICATION: | Standard, EPA And EUV As Required | ||
| FRAME AND WHEEL: | |||
| FRAME: | Powder Coating, Bolt One Handle, Include With Gun And Hose Hook | ||
| TYPE OF FRAME: | JB | ||
| COLOR OF FRAME: | Standard In Black | ||
| WHEEL: | 10" Pneumatic, Wheel Off When Shipping | ||
| ACCESSORIES INCLUDE: | |||
| PRESSURE GUN: | Professional Trigger Gun | ||
| PRESSURE LANCE: | 20" Stainless Steel Lance, M22 X 1/4"QD | ||
| HIGH PRESSURE HOSE: | ID5/16"(8mm) x 30ft(10m) steel braided hose, 3/8" Quick connect | ||
| NOZZLE TIPS: | 5Tips 1/4"QD Nozzle, 0°，15°，25°，40°And Soap Nozzle | ||
| WATER IN-TAKING HOSE: | Not Include, Provide As Required | ||
| POLICIES: | |||
| WARRANTY: | 1 Year Limited Warranty | ||
| SIZE AND WEIGHT: | |||
| SHIPPING SIZE: | 80x53x64cm | ||
| SHIPPING WEIGHT: | 106kg | ||
VIDEOS

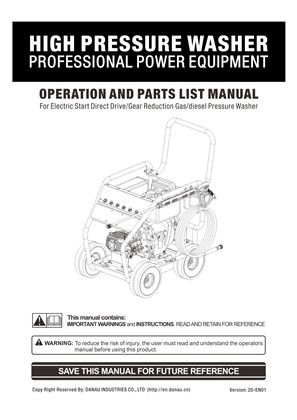

Operation And Parts List Manual
